Outback Flexpower ONE Power Center

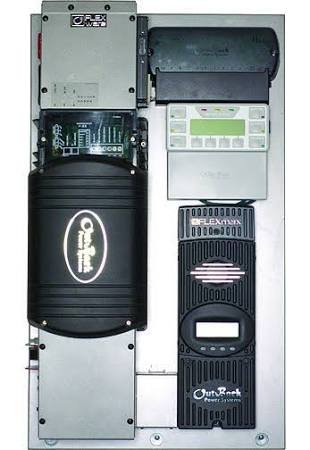

FLEXpower ONE Pre-Wired Power Systems

FLEXPower One - All in One power solution.

Includes: Mates 3s, FM80 Charge Controller & Hub4

Price $ $7888.88 + taxes & shipping.

FLEX1 VFXR3648A FM80 3600W, 48V, Pre-wired OutBack Power Inverter & 80amp Charge Controller

The FP1 with VFXR and FXR inverters can be used for either grid-tied or off-grid systems and have the capacity to use and charge a variety of battery types, and have the advanced OutBack features including Grid Zero™ and Offset modes.

The new FLEXpower ONE System accommodates all the essential protective devices in a small space at a low installed cost for applications with modest power requirements such as cabins, chalets, homes, remote communication sites and backup power systems. Utilizing a compact design and an easy-to-install mounting bracket, the fully pre-wired and factory tested.

FLEXpower ONE includes a single inverter, AC and DC wiring boxes, a single FLEXmax 80 charge controller, MATE3, HUB, FLEXnet DC and surge protector. The system is also equipped with battery and PV array breakers, a PV GFDI breaker, an input-output-bypass assembly, mounting locations for both AC GFCI Type B and EU Type F style outlets and additional AC breakers. FLEXpower ONE components carry all of the necessary ETL certifications allowing for a code compliant installation. Dimensions are 12.88 x 19.69 x 33.44 inches. Weight is 98 lbs.

Includes:

FLEXpower ONE, Prewired AC and DC boxes with 175VAC Bypass and Type B Outlet, 175ADC breaker, GFDI, 80 amp charge controller breaker, VFX3648, MATE3, HUB4, RTS, FLEXmax 80, FLEXnet DC and surge protector for 120V 60Hz applications

Price: $13918.88 + tax & shipping

OutBack Power FP2 VFXR3648A-300 FLEXpower TWO 7200W, 60Hz, 48VDC, (2) VFXR3648A-01 Inverters w/ ABC, 240VAC Bypass, GFDI, MATE3, HUB10.3, RTS, Dual FLEXmax 100, Surge Protector, FLEXnet DC

OutBack Power FLEXpower Multi-FXR inverter Pre-Wired Power Systems

Pre-wired dual-inverter system, 7.2 kW 120/240 VAC, 48 VDC

The FLEXpower pre-wired power panels integrate inverter/chargers, FM80 or FM100 charge controls, and all of the essential protective devices in an easy-to-install, fully pre-wired and factory-tested system. The FLEXpower is applicable for either grid-tied or off-grid applications with modest power requirements, such as homes, light commercial or larger backup-power systems. Utilizing a compact all-on-one mounting plate design, they are fully pre-wired and factory tested. A FLEXpower can be mounted in either a horizontal or vertical orientation to allow installation in space-limited locations. There are also mounting locations for an AC GFCI Type B outlet and additional DC and AC breakers.

FP systems with VFXR or FXR inverters can be used for either grid-tied or off-grid applications and have the capacity to work with a variety of batteries, as well as advanced OutBack features including Grid Zero and Offset modes.

Each FP2 is designed for 120/240 VAC single-phase output. Each power panel includes two inverter/chargers, two FM80 or FM100 charge controllers, FlexNetDC, AC and DC wiring boxes, a MATE3s, HUB10, and an AC/DC Surge Protector, X-240 transformer (not on FXR systems), inverter and controller breakers with GFDI, and an AC Input-Output-Bypass Assembly. Dimensions are 59"W x 21"H x 13"D. Weight is 260 lbs.
