Btek Pellet Mills and Hammer Mills
Import Specialist of Biomass Production Equipment

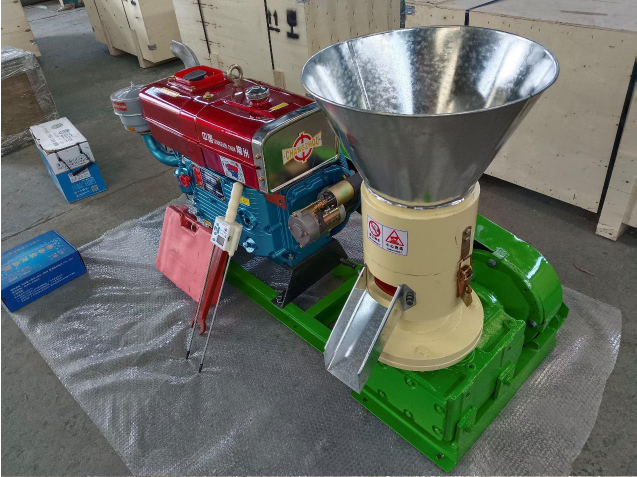

New 3rd Generation PK-Series Pellet Mills now available IN DIESEL.

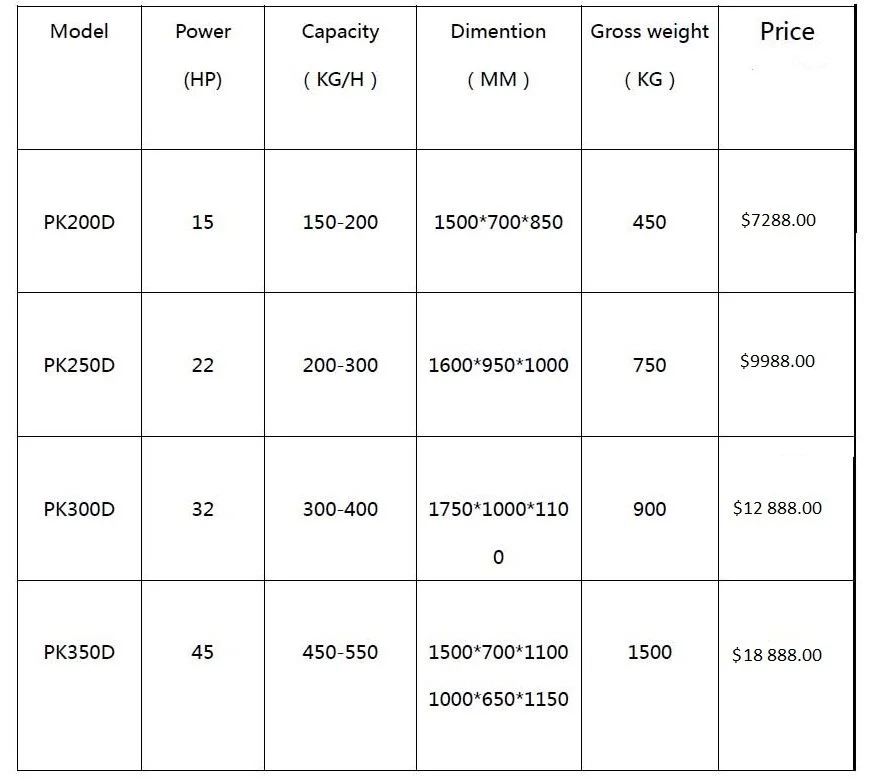

PK200D - PK250D - PK300D - PK350D

Plus taxes & Shipping

Electric 3 PHASE.
THE BEST IN HARD WOOD PELLET PRODUCTION

PK Models come with GEAR BOX that multiplies torque values to
process hard wood fibres.

3 Year Manufacturer's Warranty on Mill and Gear Box, 1 Year on Motor (diesel or electric)*

NO BINDER REQUIRED
GEARED DRIVE SYSTEM

*Provided all maintenance (GREASING) is adheared to.

ALL PK-MODELS are Gearbox Wood Pellet Mills.

PK-200
Price: $4599.00 + Taxes

1) Capacity: 150~200 kg/h for wood pellet.
2) Power: 7.5kw
3) Net weight: 350kg
4) packaged size:1100*500*850mm
5) Pellet size: 6-8mm

Pellet length: 20-50mm(adjustable)
Spare parts : $300 include 1 roller and 1 pc mould
Manufacturer's Warranty period: Gearbox for 3 years,motor for 1 years,quick-wear parts
working 1500-2000 hours
Package : wood box

Advantage:

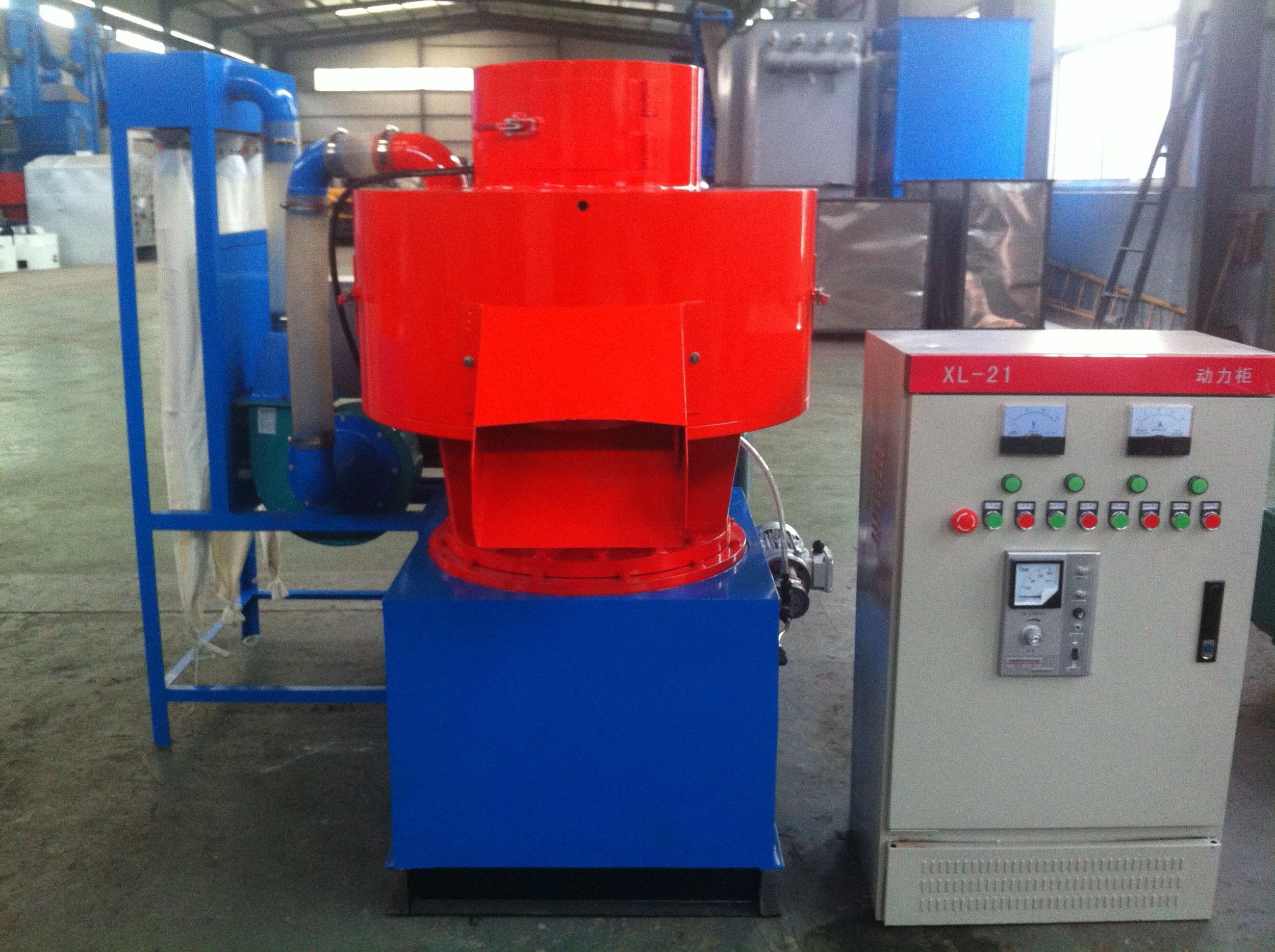

Introducing LH SERIES
The new LH series “double vertical ring-die pellet mill has been researched, designed, and is produced by our manufactures over seas.

With a new shape which has proven to be more reasonable structure providing increased stability and production of professional grade wood, rice husk, peanut shell, bamboo
Palm fiber or other biomass products.

Pellet produced from inside to outside press.

Centrifugal force and extrusion pressure together produces more capacity.

At the same time assures hardness and density of pellet.

The special design is 4 rollers working which increases press rate which then increases capacity. Ring-die is a “vertical double-deck”structure.

It can use one mould with same hole size for increasing the work life. Moreover it can use one mould with different hole sizes, saving cost for another size mould.

1. Gearbox: Continues the PK series New generation gearbox; Driving torque with high-precision gears; Auto-matic Lubricant pump system keep the gearbox working flawlessly up to and exceeding warranty period.

2. Vertical motor; most important characteristic is the mounting hole with output shaft at the center - Equidistant distribution around, allowing for more power and stability during processing.

3. Blower system: Located on one side of the work bin. The main function is for dedusting and discharging steam.

4. Working parts: Ring-die and rollers materials are made from alloy steel, heat treated; Hardness measured at more than 52. With this hardness we can rest assured the pelleting quality and warranty time.

$6988

$9455

$12 142

$17 808

** Currency Conversion not applicable on NEW PK Diesel series.
