(CE) Feed Pellet Mills
SK Mills produce feed and fuel pellets from all forage crops.
SK -LINE 3 Phase, Diesel and PTO
Quality feed bedding and up to 50% wood mixed pellets from waste wood made with SK Line.
Demonstrations always available for serious clients - call or email us today.
All equipment is CE & ISO 9001 Approved
IF CSA/UL approved motor is required please contact us for quotation.
Pellets seen here made with SK Line and Mixed Wood Chips
Manufacturer's Warranty and Full Service provided.
SK Line 1 year warranty on motor* (diesel or electric)
SK Line 3 years on transmission / drive train / frame. *
* Provided all maintenance is adhered to.
PTO DRIVEN PELLET MILLS NOW AVAILABLE!
$2795.00+ Tax&Shipping
PTO PELLET MILL SPECIFICATIONS AND PRICES*
Prices current as of 2021.
This series machines are powered by Tractor PTO shaft and used for making the wood pellet, straw pellet, sawdust pellet , bamboo powder, rice husk , cotton stalk, seed skin peanuts shell clover, cotton seed shell.etc and can mix with all kinds of powder materials for the fuel.
| Model | Capacity (kg/h) | Dimension (mm) | Weight (kg) | Price |
|---|---|---|---|---|
| SK-200T | 100-150 | 500x450x900 | 150 | $2995 |
| SK-250T | 200-250 | 550x500x1050 | 280 | $3795 |
| SK-300T | 300-400 | 600x550x1200 | 350 | $4950 |
| Sk-350T | 400-500 | 650x600x1300 | 500 | $5650 |
Taxes not included in prices
Some Delivery Charges may Apply.
Combination Hammer/Pellet Mill/Cyclone
For grass, straw, hay, stalks, feed and up to 50% wood pellet production.
This is a combination hammer mill, pellet mill and cyclone - three operations all performed with one machine. Saves labour and energy consuption. Main use is for straw, hay, grasses, corn stalk, rice stalk or wood shavings to produce pellets with a 6MM/8MM/10MM diameter for fuel use.
The hammer mill is used to crush the raw material into powder size prior to entering the pellet mill. This powder is then transported directly to the pellet mill via the Cyclone where dust and raw material is separated and pellets are produced. This combination pellet/hammer mill can be powered either by diesel engine or electrical motor dive which powers both mills simultaneously.
CURRENT PRICES ON COMBO MILLS
| MODEL | POWER | CAPACITY (KG/H) | WEIGHT (KG) | Price $CND |
|---|---|---|---|---|
| SK-200PC | 15KW 3 PHASE | 100-150 | 450 | $8499 |
| SK-250PC | 22KW 3 PHASE | 200-250 | 580 | $8999 |
| SK-300PC | 30KW 3 PHASE | 300-400 | 700 | $9499 |
| SK-200PD | 22HP DIESEL | 100-150 | 600 | $8299 |
| SK-250PD | 30HP DIESEL | 200-250 | 700 | $9299 |
Taxes not included in prices
Some Delivery Charges may Apply.
SK-250PD Hammer Mill/Pellet Mill w/Cyclone w/30HP Diesel
SK-300PC Combination Hammer Mill/Pellet Mill w/Cyclone 3 Phase Electric

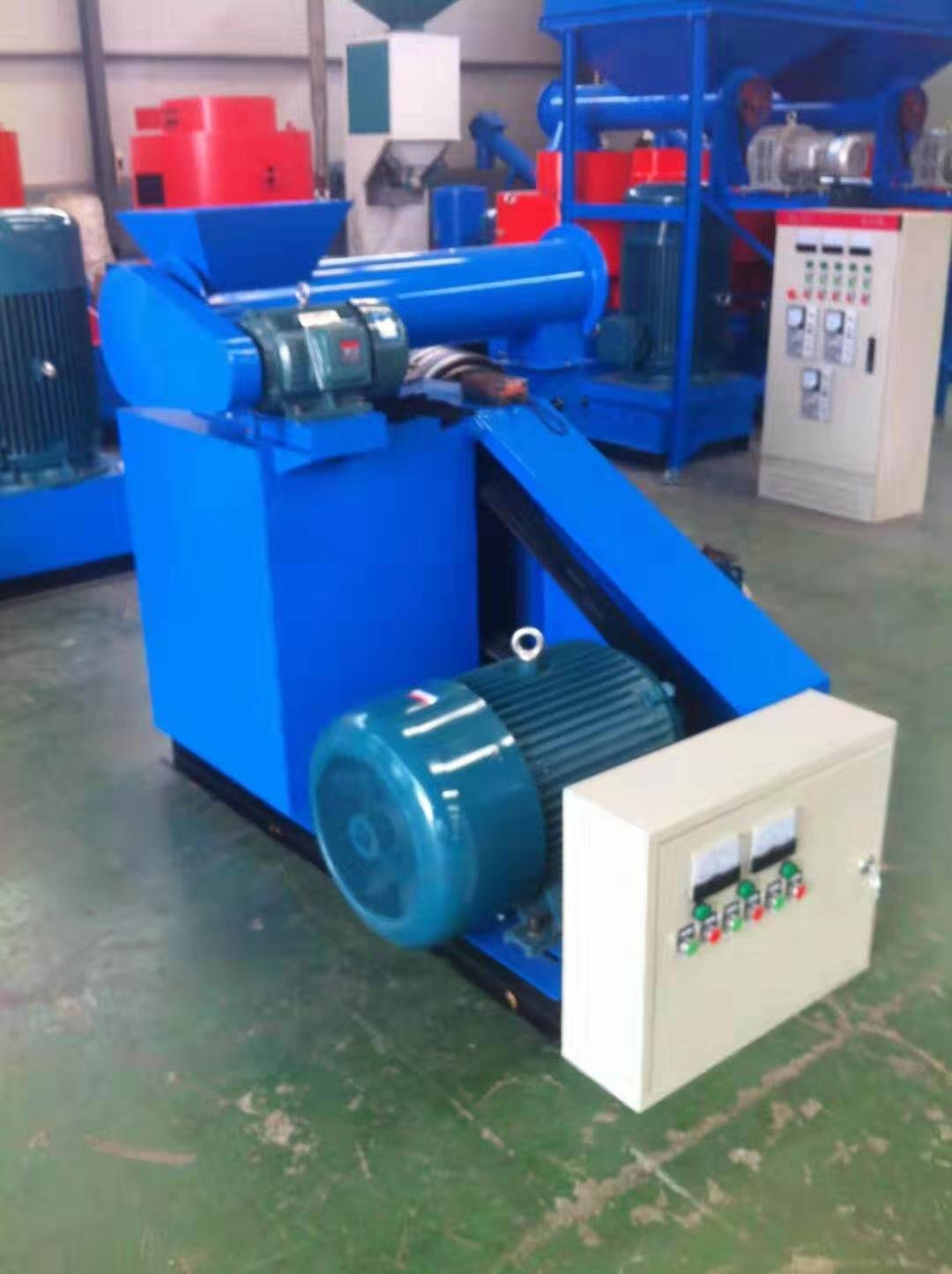

Latest Electric SK-Series Pellet Mills
SK 3 Phase drive pellet mills are mainly used for home and small processing plants. Best results are obtained when using wood saw dust, straw, cotton stalk, Rice husk, Peanut shell, Bamboo, Empty fruit branch, Pulverized coal or Waste paper . A hammer mill is required for everything except saw dust. Pellets are of high density, contain high fuel value (BTU), low moisture and low ash content. Contact us for more details.
CE/ISO9001 Electric 3 Phase Motor Included.
UL/CSA Motor or Control Boxes Available on Request.
Please specify voltage requirements.
| MODEL | POWER (KW) | CAPACITY (KG/H) | PELLET DIE (MM) | DIMENSION (MM) | WEIGHT (KG) | 3 phase Electric Motor (Cnd)* |
|---|---|---|---|---|---|---|
| SK-200E | 7.5 | 100-150 | 6-8 | 1300*600*900 | 400 | $3299 |
| SK-250E | 15 | 200-250 | 6-8 | 1500*650*1050 | 550 | $4599 |
| SK-300E | 22 | 300-400 | 6-8 | 1550*750*1300 | 680 | $5849 |
| SK-350E | 30 | 400-500 | 6-8 | 1550*750*1300mm | 750 | $9549 |
Latest Diesel SK-Series Pellet Mills
SK 3 Diesel drive pellet mills are mainly used for home and small processing plants. Best results are obtained when using wood saw dust, straw, cotton stalk, Rice husk, Peanut shell, Bamboo, Empty fruit branch, Pulverized coal or Waste paper . A hammer mill is required for everything except saw dust. Pellets are of high density, contain high fuel value (BTU), low moisture and low ash content. Contact us for more details.
Diesel Motor Included
| MODEL | POWER (HP) | CAPACITY (KG/H) | PELLET DIE (MM) | DIMENSION (MM) | WEIGHT (KG) | Diesel Motor (Cnd)* |
|---|---|---|---|---|---|---|
| SK-200D | 15 | 100-150 | 6-8 | 1300*600*900 | 450 | $4699 |
| SK-250D | 22 | 200-250 | 6-8 | 1500*650*1050 | 600 | $5599 |
| SK-300D | 30 | 300-400 | 6-8 | 1650*850*1400 | 850 | $7699 |
| SK-350D | 42 | 400-500 | 6-8 | 1350*1100*1100 Box1 800*700*1200 Box 2 | 950 | $11099 |
Switch grass / corn stalk / straw / grasses
FROM BALE TO PELLET COMPLETE SYSTEM
INTRODUCTORY OFFER
Contact us for latest pricing.
SK-200PC available for demonstration in Tottenham, Ontario.
These pellets were produced at our Tottenham, Ontario location.
Commercial grade product made right here.

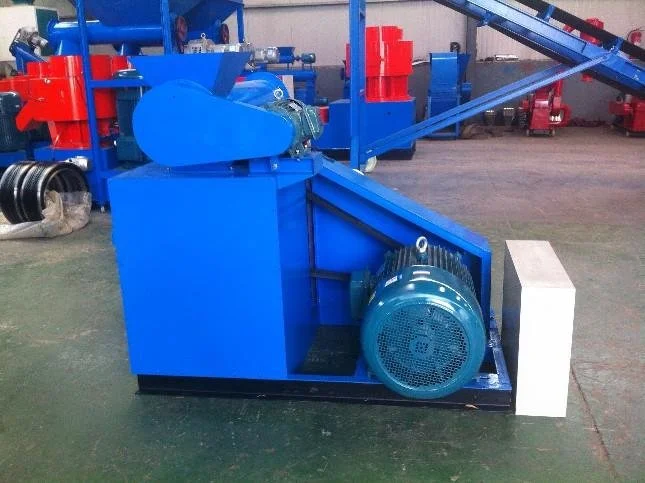

HK Pellet Mills
Large Capacity RING DIE Feed Pellet Mills
| MODEL | POWER (KW) | CAPACITY (KG/H) | DIMENSION (MM) | WEIGHT (KG) | Price |
|---|---|---|---|---|---|
| HK250 | 22+1.5+0.55 | 600-800 | 1600*1500*1550 | 1200 | $7200 |
| HK260 | 22+1.5+0.55 | 800-1000 | 1600*1500*1550 | 1500 | $8000 |
| HK300 | 30+1.5+0.55 | 1500-2000 | 1650*1500*1550 | 1800 | $11000 |
Pellet Size: 2-12mm
Pellet Length: 10-50mm (adjustable)
DOUBLE VERTICAL RING DIE TECHNOLOGY
